Materials science · Panacea flagship

The clearest solid ever made — and the ghost that resisted it for ninety years.

Q: How transparent is the Panacea monolith?

Supercritical-class in Panacea's in-house measurements — the most transparent commercially available aerogel to date.

Q: Who made the first aerogel?

Samuel Stephens Kistler, who published the first aerogels in Nature in 1931.

Aerogel is 99.8% air wearing a nanoscale skeleton of glass. Making it at all took a genius in 1931. Making it transparent took supercritical drying — slow, pressurized, hazardous. Making it transparent by freeze-drying was supposed to be impossible. This is the story of how Panacea Bio Chem did it anyway.

A transparent aerogel monolith catching glacial blue light — Panacea Bio Chem — Scientific illustration — not experimental imagery.

What aerogel is

Take a gel — a solid network swollen with liquid — and remove the liquid without letting the network collapse. What remains is aerogel: the lowest-density class of solid materials known, an insulator so effective it shields blowtorches with a centimetre of haze, and — when the nanoscale skeleton is uniform enough — a material clearer than window glass.

99.8% nothing

The Stardust mission's collector aerogel was ~99.8% empty space by volume. The solid fraction is a lace of silica particles a few nanometres wide, fused into chains — a structure closer to smoke than to stone.

The blue haze

Any size dispersion in that skeleton scatters visible light (Rayleigh scattering) — the reason most aerogels carry a smoky blue cast. Transparency is a war against nanometre-scale irregularity.

Why the world wants it clear

A transparent super-insulator changes windows forever: daylight without heat loss. It changes solar-thermal receivers, scientific glazing, cryogenic viewports — anywhere light and insulation must coexist.

Why it stayed rare

The only established route to transparent monoliths — supercritical drying — needs days of processing above the solvent's critical point, in pressure vessels most laboratories will never own.

The drying dilemma

Every aerogel is born wet. How you dry it decides everything.

Supercritical drying — transparent, but brutal

Kistler's 1931 route: raise the pore liquid past its critical point so liquid and gas never meet — no capillary force, no collapse.
Tewari, Hunt & Lofftus refined it with low-temperature CO₂ substitution (1985, Lawrence Berkeley Lab).
Cost: days per batch, high-pressure equipment, real hazard. Transparent aerogel stayed a luxury of national labs.

Freeze-drying — fast and clean, but opaque

Freeze the solvent, then sublime it straight to vapour — no pressure vessel, no solvents beyond water.
The catch: growing ice crystals tear the nanoscale network into micron-scale pores. Those pores scatter light brutally.
Result: freeze-dried "aerogels" (cryogels) come out white and opaque. A transparent freeze-dried monolith was a contradiction in terms.

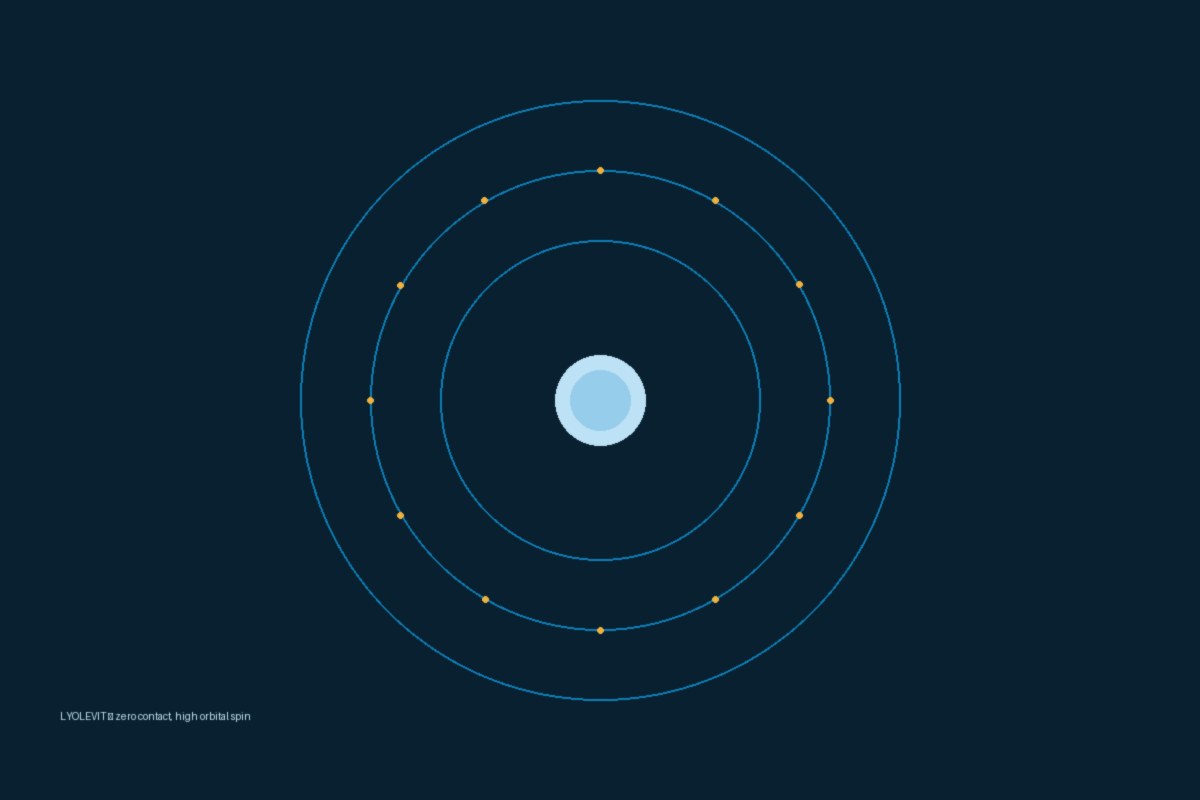

LyoLevit levitated lyophilization concept — sample held in zero-contact high orbital spin during sublimation — Panacea Bio Chem

The LyoLevit answer

At Panacea Bio Chem we asked the question differently: the ice is not the enemy — contact is. The cake still sits in its glass container, and the container is exactly the problem: wherever the frozen cake touches the glass, crystal growth is fed, guided and frozen into the very planes that become scattering surfaces. So we hold the cake levitated inside the container — touching nothing — and spin it through sublimation at high orbital speed. No wall to nucleate against, no static planes, no privileged direction for crystals to grow along.

That is LyoLevit — levitated, zero-contact, high-orbital-spin lyophilization, developed at Panacea by Bogdan Dicoias. Applied to aerogel gels, it produced what the field said freeze-drying could not produce: a freeze-dried aerogel monolith with supercritical-class transparency — the most transparent commercially available aerogel we know of to date.

In-house measurements · full method disclosure follows peer review

Bogdan Dicoias — Biochemist, AAC Designer, Director of Panacea Bio Chem

"Everyone tried to make the ice gentler. We took away the walls instead. The cake still has its container — it just never meets it. Once the cake touches nothing, the crystal has no one to take instructions from: it grows like weather, not like architecture. That is when a freeze-dried ghost becomes clear."

Bogdan Dicoias — Biochemist · AAC Designer · Panacea Bio Chem Ltd

What we show, and what we hold back

This page makes a strong claim, so it carries an honest boundary. Panacea Bio Chem's in-house measurements place our LyoLevit-produced aerogel at supercritical-class optical transparency — above the figures documented for conventional freeze-dried material and in line with the best commercially available monoliths. What we publish here is the physics and the outcome; the process parameters remain Panacea intellectual property until peer review is complete.

Shown

The problem, the mechanism, the outcome class (supercritical-class transparency from a water-based, pressure-free process), and the ninety years of credited work that made the question worth answering.

Held back

Spin rates, field geometries, gel formulations and cycle curves. The world's first freeze-dried transparent monolith deserves a proper unveiling — with data, not adjectives.

Frequently asked questions

Why is freeze-dried aerogel normally opaque?

Growing ice crystals tear the nanoscale network into micron-scale pores that scatter light. Conventional freeze-drying yields white cryogels, not clear monoliths.

What does LyoLevit change?

It removes contact: the cake levitates inside its container, touching no wall, spun at high orbital speed through sublimation — no interface to nucleate against, no static planes to grow along.
